Model NO.
DQ1100E1K-01
Delivery:
FOB
Quantity:

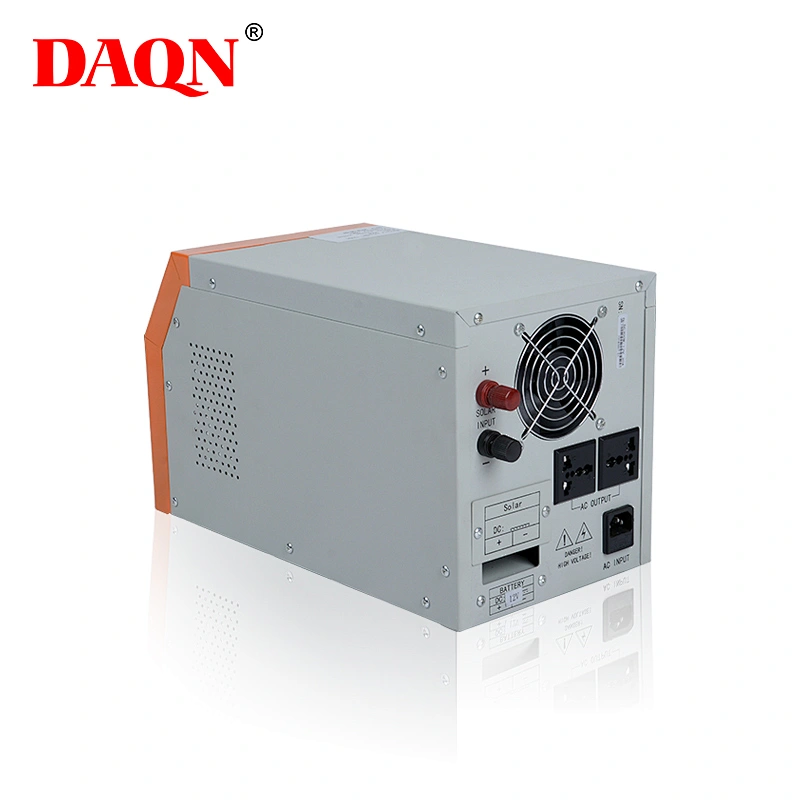

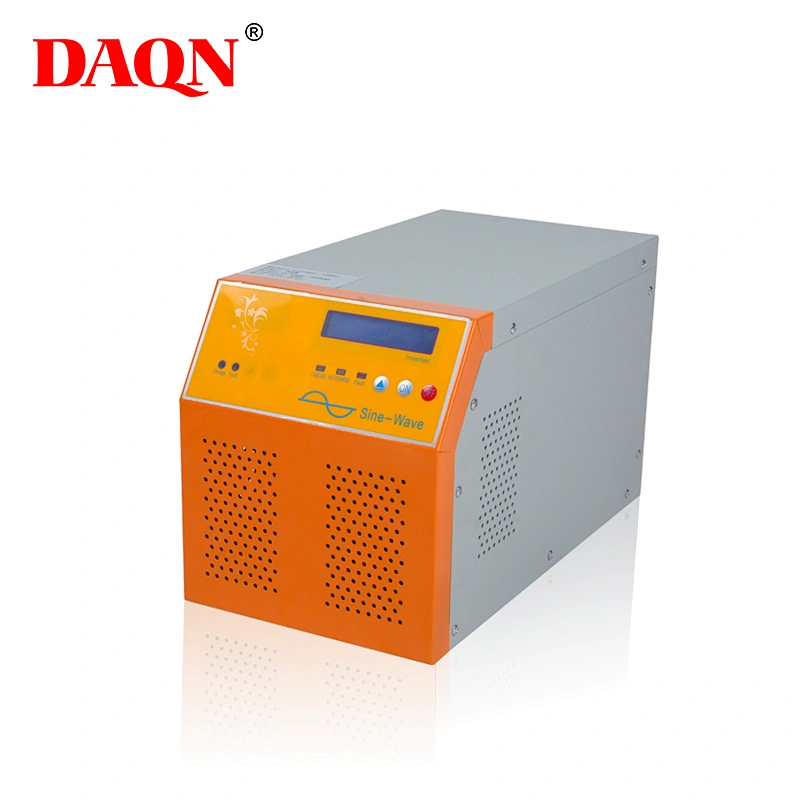

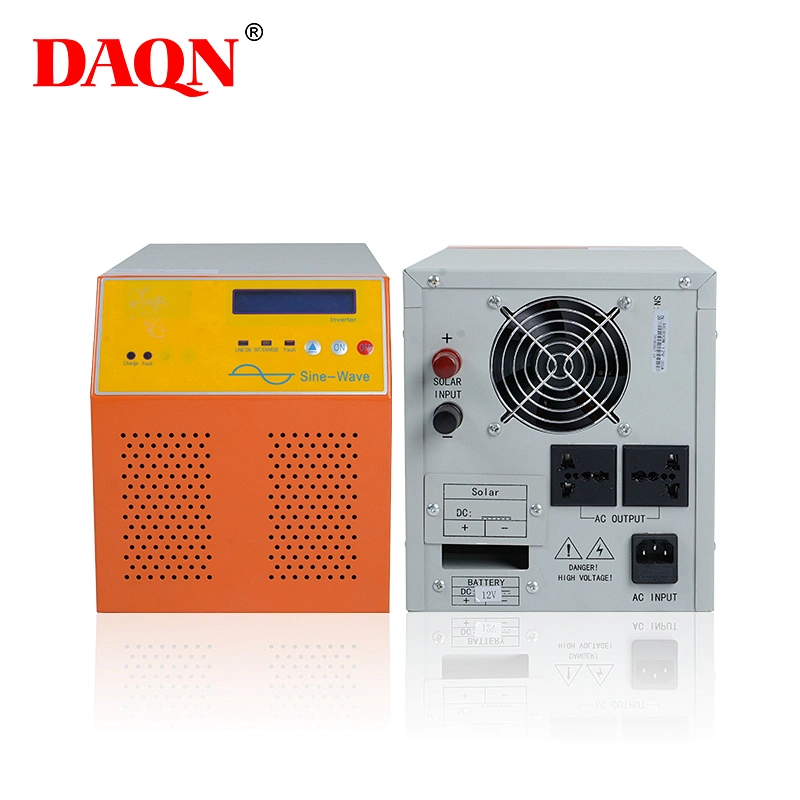

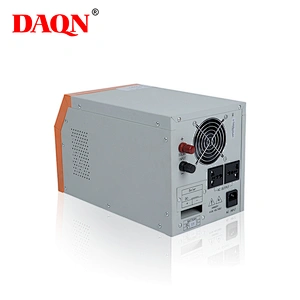

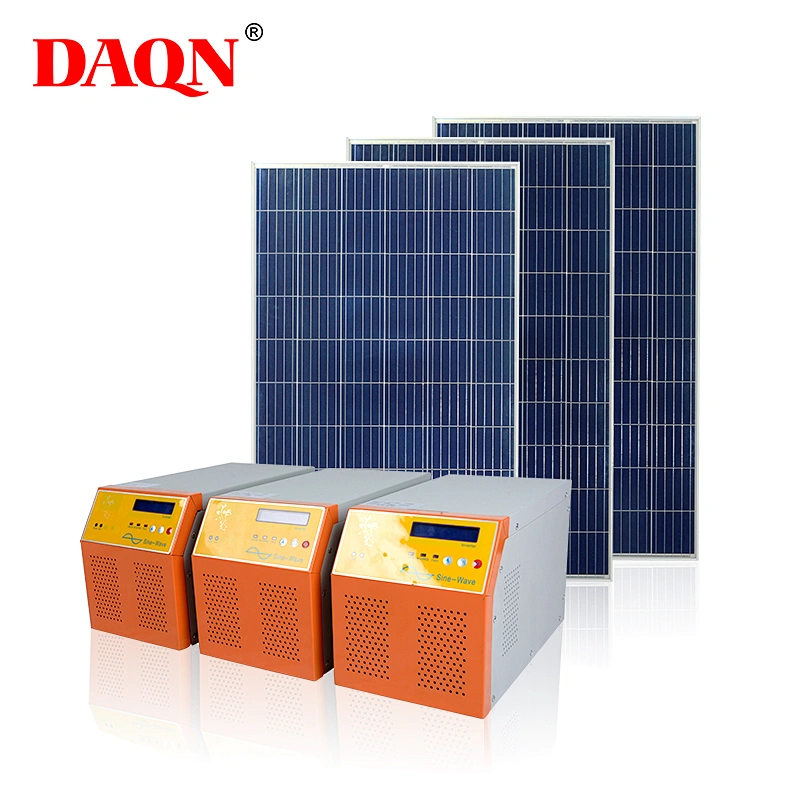

High quality 10kw charge controller with inverter

inverter

ModelDQ1100E1K-01
Rated power10000w
Rated DC voltage(v)96V/120V
Line input voltage(v)165v-275/5-45A
Line charge current5-15A
Inverter outputOutput voltage(V)/Cuwent220VAC±5%
Output frequency50HZ/60HZ±1%
Wave formPure sine wave, THD <4%(Full load)
Solar inputMaximum voltage(V)42v or 88v or 176v
Rated power(KWP)10000
Solar controllerCharge current(A)100A
Control range96v(80-120); 120v(100-160v)
Charging efficiency90%-95%, peak on 97%
Over charge protecttive voltage of battery(v)96V(114); 120V(100-160V)
Over charge recover voltage of battery(v)96v(109.6); 120v(137V)
Inverter efficiency90%(full load)
Inverter overload capacity120% in 10 senconds
OthersVoltage drop between solar module and battery≤0.5V
Voltage drop between loads and battery(v)≤0.25V
Cooling fanhave
Environment humidity0-90% Maximum, non-condensable
Proudct size:D*W*H(mm)535*280*680
Packing size:D*W*H(mm)595*340*725
N.W&G.W82/98


Multiple parameters in the same series

charge controller

Is committed to the development of clean energy, the main products include photovoltaic solar off-grid inverter, photovoltaic solar controller,transformers and solar street light controller. These products are widely used in the fields of new energy, solar power station, fire, construction, industry, civil, finance, finance and taxation, electricity, medical, aviation, military automation and control system and national key project construction.

10kw charge controller

New solar inverter function:
1. 100% Full Power
2. Import MOS tube Power Material
3. Double Powered Protection
4. Dual temperature control Protection
5. Battery and city power priority switch
Very suitable for African Market.

1. Living house and home building

2. Office building, factory and warehouse

3. Home lighting: rural area, islands where lack of electricity, backup power

4. Power station, field operation and some huge engineer construction.

charge controller

10kw charge controller

1.Please avoid direct eyes contact to prevent visual damage.

2.The charging and dismantling process must be carried out in a safe place.

3.Please keep this product in a safe and solid location.

4.Do not short-circuit, disassemble; do not put in the water or near the fire.

5.In the absence of professional and technical personnel, do not attempt to repair or replace the battery, the supplier shall not be responsible for any damage of the consequence of replacing or repairing the battery that not conducting by supplier.

Using package color inner boxes.

Attached installation manual.

Match installation screw and switch needle.

We use K=K strong white carton outer package.

Printing the product pictures on the boxes.
