Model NO.
DQ1700A6-01
Delivery:
FOB
Quantity:

Household high quality waterproof IP65 photovoltaic junction box off grid solar system combination box

For grid-connected power generation system in large-scale PV power plants, it is necessary to add the DC combiner boxes device -PV array combiner boxes between PV arrays and PV inverters in order to lessen the connection cable between them, simplify maintenance and improve reliability.

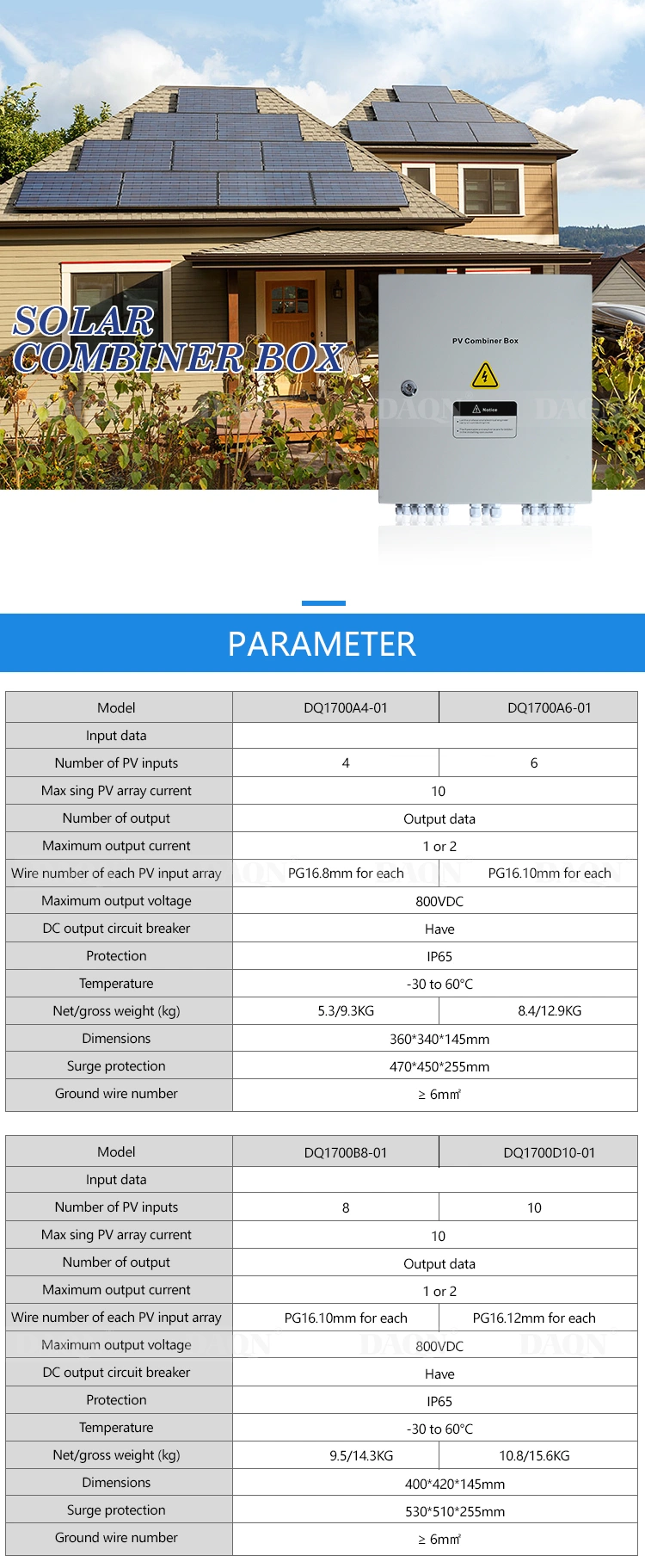

ModelDQ1700A4-01DQ1700A6-01DQ1700B8-01DQ1700D10-01
Input data
Number of PV inputs46810
Max sing PV array current10
Number of outputOutput data
Maximum output current1 or 2
Wire number of each PV input arrayPG16.8mm for eachPG16.10mm for eachPG16.12mm for each
Maximum output voltage800VDC
DC output circuit breakerHave
ProtectionIP65
Temperature-30 to 60°C
Net/gross weight (kg)5.3/9.3KG8.4/12.9KG9.5/14.3KG10.8/15.6KG
Dimensions360*340*145mm400*420*145mm
Surge protection470*450*255mm530*510*255
Ground wire number≥ 6mm2


In order for convenient maintenance and reliability of PV system, we generally install PV combiner box between PV array and PV controller or inverter to reduce the connecting wires.

combiner box

  Features

1.Meet the need of indoor and outdoor installation

2.Maximum access 16 paths of PV tandem, rated current of each path is 15A

3.Wide range of DC input voltage, maximum input voltage up to 500/1000VDC

4.Dedicated fuse for PV

5.Dedicated high-voltage lightning device for PV, with lightning protection function for both positive pole and negative pole

6.Multiple machines can work in parallel

7.Easy and fast maintenance

8.Remote monitor (optional)


Welcome to consult Solar PV Combiner Box
