Power Inverter 100KW Pure Sine Wave Inverter DC To AC 12v/24v 110v/220v Solar Panel Inverter
| Power Inverter 100KW Pure Sine Wave Inverter | ||
| Model | DQ1202C100KW-01 | |
| Power | 100KW | |
| Power Factor | 0.8 | |
| Input | Phase | 3 phase 4 wire and ground |
| Voltage Range | 380V±20%(3 phase), phase voltage 220V | |
| Frequency Range | 45-65Hz | |
| Rectifier | 3 phase 6 pulses, 12 pulses is optional | |
| Output | Phase | 3 phase 4 wire and ground |
| Wave form | Pure sine wave | |
| Crest Factor | 3:01 | |
| Rated Voltage | 380/400/415V optional ±1% for static load, 5% forfluctuant load | |
| Phase Voltage setting | 200-244VAC, pls confirm when order | |
| Transient Response | ±5%,10ms | |
| Frequency | 50/60 Hz ±0.05% | |
| Total-harmonic distortion | < 3% linear load, <5%(nonlinear load) | |
| short circuit current | Short current for 0.1s(200% current) | |
| Overload Capacity | Overload 125% for 10 Mins, 125%-150% for 1min, automatically resume when load become normal | |
| Bypass | Type | Static state +manual maintenance bypass |
| Input Phase | 3 phase 4wire and ground | |
| Input Voltage Range | 15% - 25% (the front control panel selectable) | |
| Transfer Time | Inverter / bypass transfer switch time(Overload): 0ms inverter / bypass transfer switch time (fault inverter) 1ms | |
| Efficiency | Whole unit | >85% |
| Inverter | 95 | |
| Remote Signaling | Dry contact (battery low, battery discharging, bypass / fault); output 12vdc/80mA, Optional parts | |
| Communication Interface | RS232 (SNMP, modem optional) | |
| Running Temperature | 0-40 degree Celsius | |
| Relative Humidity | Less than 95% (without condensing) | |
| Noise at 1 M | Less than 60dB | |
| Degree of protection | IP20 | |
| Product Size(mm)&Weight(Kg) | 560*230*570mm, 30Kg | |
Using High Quality Material
1. With AC reactor (Protect against city power current shock)
2. Double protection. (Two fuses, including the city power security and battery power security)
3. Thyristorcharging. (The thyristor charging current is larger than charging board one.The thyristor charging current could reach to 40-50a while the charging board is only 10a-15a)
4. IGBT converter. (High 95% transfer efficiency and strong anti-loading shock capacity)
5. AC filter capacitor.( Have stabilizing voltage function and pure sine wave output)
6. Under normal working condition when taking the loads, the machine can run as usual even when cut out the battery power.(Strong capacity for anti-shock, stable function)
7. The Chinese/English language operation interface for choice.
8. Touching display
9. IGBT brand: Mitsubishi (import from Japan)
Thyristor charging brand: Simon Kang Brand(import from German)

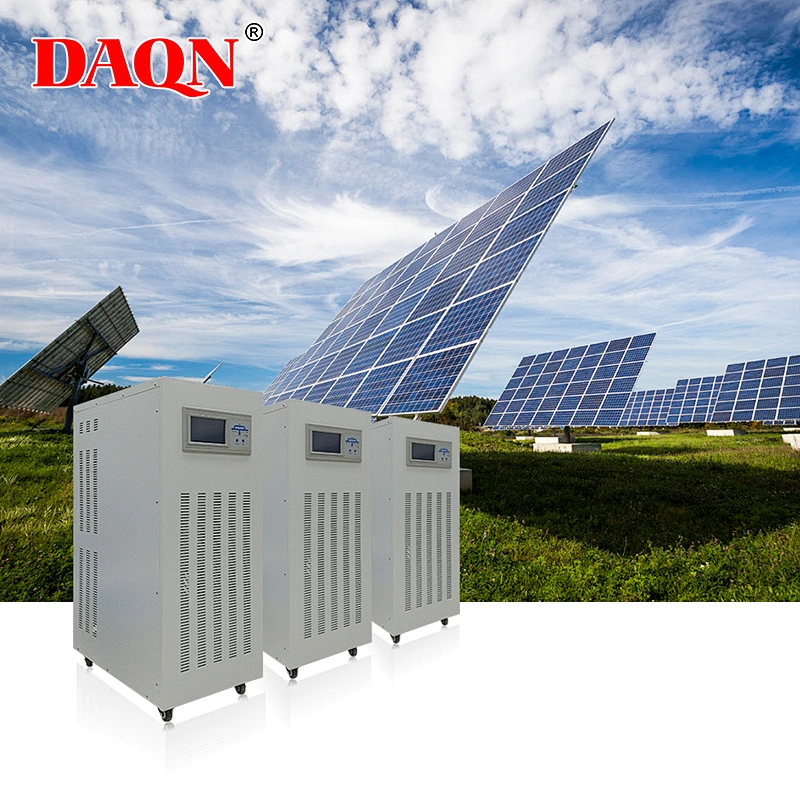

Designed and manufactured according to new energy generating system, off grid inverter is the core component of photovoltaic power generating system. It converts DC to AC mainly used in the fields of PV power plant, wind power plant, wind solar oil storage complementary power generating system and solar home system. High efficiency and superior performance can guarantee absolute stability.It is suitable for areas without electricity like mountain, pastoral, border and island.
