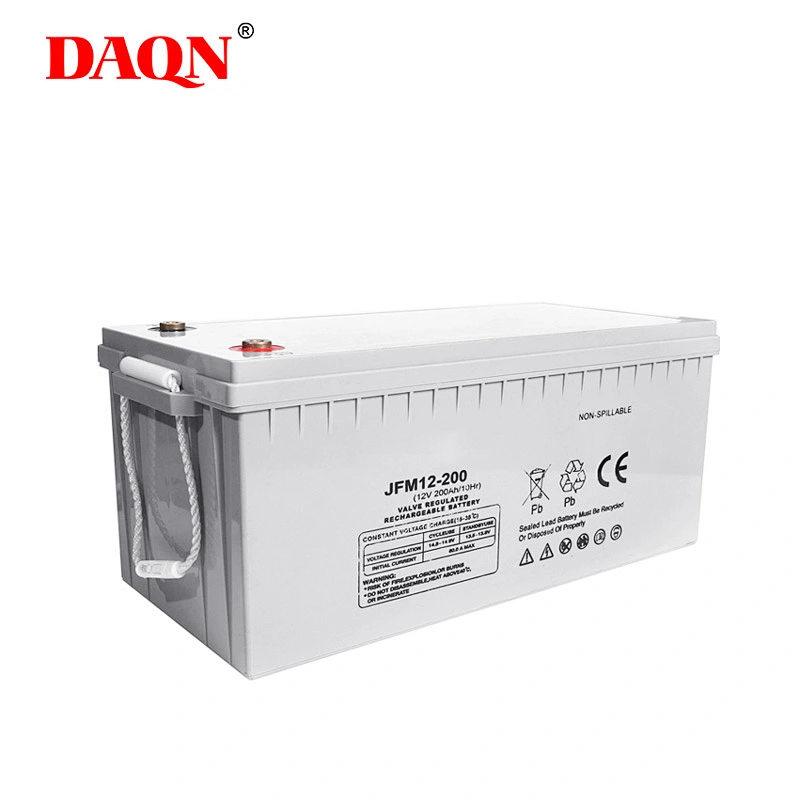

High Quality Solar Battery GEL 12V 200Ah Solar Battery 12v battery price
1, Function Parameter | 5, Environment Temperature | ||
Norminal Voltage | 12V | Discharge Temperature | -20-60℃ |
Norminal Capacity(10 hours rate) | 200Ah | Charge Temperature | -10-50℃ |
6Numbers of Cells | 6cell | Storage Temperature | -20-60℃ |
2, Rated Capacity at 25℃(77℉) | 6, Inner Resistance & Max. Discharge Current | ||
10hr,10.8V/cell,20℃/68℉ | 200Ah | Fully Charge Battery at 25℃(77℉) | 2mΩ |
3hr,10.8V/cell,20℃/68℉ | 191.7Ah | Max. Discharge Current | 3750A(5s) |
1hr,10.5V/cell,20℃/68℉ | 138.1Ah | Short Circuit Current | 12500A |
3, Capacity affected by Temperature(10 hour rate) | 7, Self-discharge@25℃(77℉) | ||
40℃(104℉) | 103% | Capacity after 3 Month Storage | 91% |
25℃(77℉) | 100% | Capacity after 6 Month Storage | 82% |
0℃(32℉) | 85% | Capacity after 9 Month Storage | 73% |
-15℃(5℉) | 65% | Capacity after 12 Month Storage | 64% |
4, Constant Voltage Charging at 25℃(77℉) | 8, Dimension & Weight | ||
Cycle Charge | 14.4V~14.9V | Length | 520mm |
Maximum Charging Current | 62.5A | Width | 269mm |
Temperature Compensation | -30mV/℃ | Height | 220mm |
Float Charge | 13.6-13.8V | Total Height | 225mm |
Temperature Compensation | -20mV/℃ | Reference Weight | 70kgs |
Applications :
Uninterruptible Power Supply(UPS); Emergency Power Supply(EPS);
Emergency Backup Power; Emergency Light System;
Railway System; Aircraft Signal System;
Alarm and Security Systems; Electronic Instruments and Equipment;
Telecom Communication System; DC Screen Power Supply;
Navigation Mark Signal System; Solar And Wind Energy Storage System ;
Note
1. Charge under direct sunlight for 6 to 8 hours.
2. Turn on the switch, before install the lamp.
3. Please choose a position without any shelter for enough sunshine and fully exposure.
4. After turn on the light, first it will flash then light, which is normal.
Packaging advantage
Using package color inner boxes.
Attached installation manual.
Match installation screw and switch needle.
We use K=K strong white carton outer package.
Printing the product pictures on the boxes.
