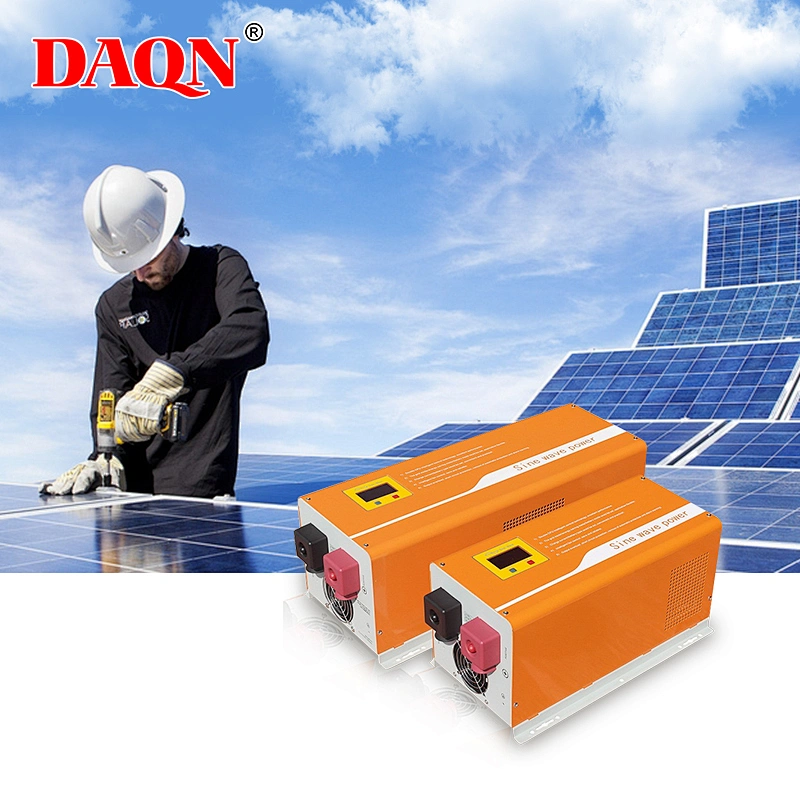

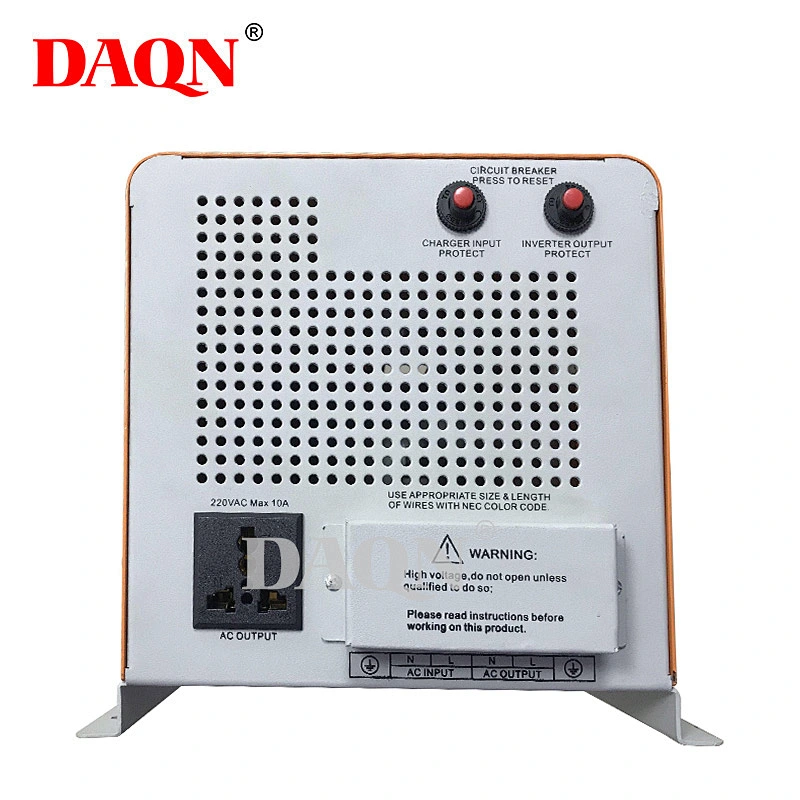

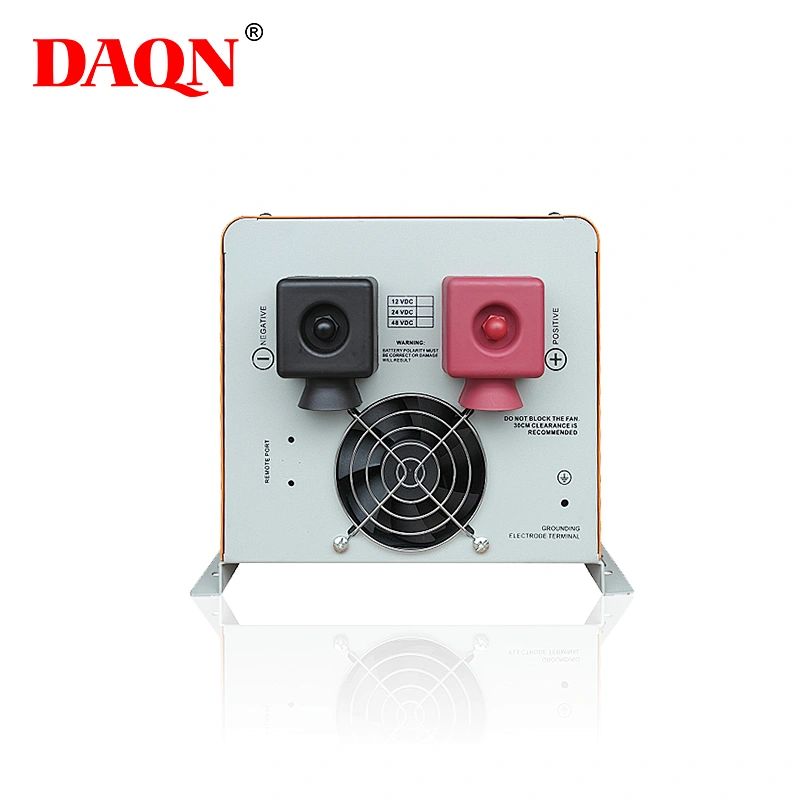

Wall-mounted Pure Sine Wave Inverter
- Model NO.:
- DQ1600B6K-01
- Delivery:
- FOB
Home use pure sine wave power inverter 5000w 12v 24v 48v dc to ac inverter
DC AC Pure Sine Wave Power Supply 1KW 1.5KW 2KW 3KW 4KW 5KW 6KW Inverter With Off Grid Solar Power System

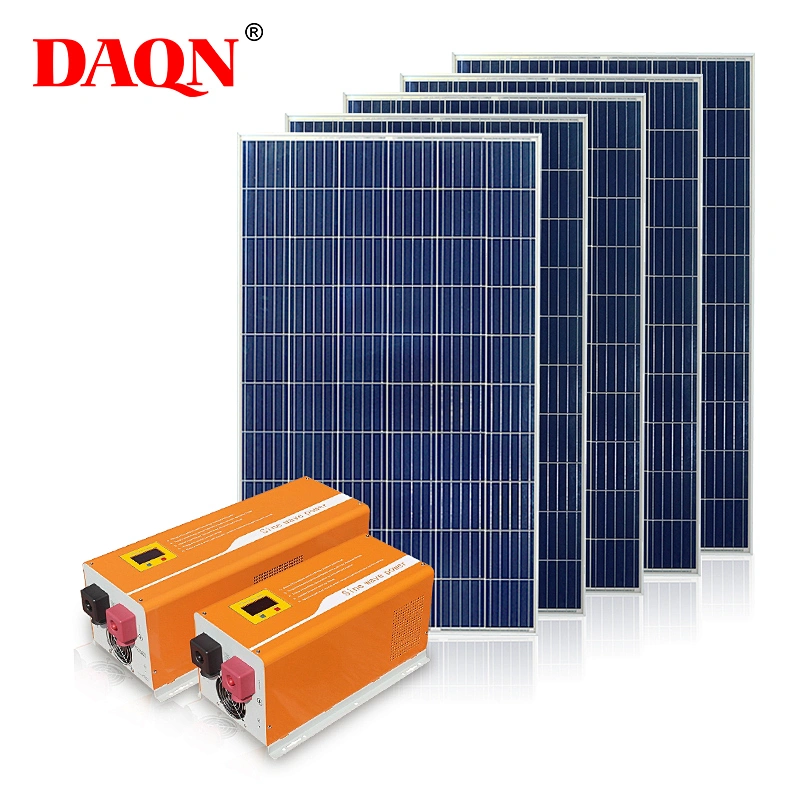

High frequency solar inverters system for 5KW solar energy system home
Battery overvoltage protection, battery undervoltage protection, overload protection, short circuit protection, overtemperature protection,etc
Product Description
Model | DQ1600A 1K-01 | DQ1600A 1K5-01 | DQ1600A 2K-01 | DQ1600B 3K-01 | DQ1600B 4K-01 | DQ1600B 5K-01 | DQ1600B 6K-01 |
Rated power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W |
Battery rate voltage | 12V/24V/48VDC | 24V/48VDC | 48V/96VDC | ||||
Battery charge current | 30A(default)-C0-C6 | ||||||
Equalization charge | 14V/28V/56V/112V | ||||||
Battery type | U0-U7 | ||||||
Input voltage | 85-138VAC/170-275V | ||||||
Input frequency | 45-65HZ | ||||||
Output voltage | 110V/220VAC+-5%(inversion mode) | ||||||
Frequency | 50/60HZ+-1%(inversion mode) | ||||||
Output waveform | Pure sine wave | ||||||
Transfer time | <10ms(typical load) | ||||||
Over load | 110-120% 30S;>160% 300ms | ||||||
Ambient temperature for storage | -15-+50℃ | ||||||
Operation/storage conditions | 0-90%(no condensation) | ||||||
External dimensions | 480*222*182mm | 655*248*182mm | |||||
Packing dimension | 560*290*235mm | 735*316*235mm | |||||
Main features:
1) Combine with solar power controller and inverter hybrid function.
2) Pure sine wave output for compatibility with loads of different types;
3) Visualization of operation status of the equipment through a digital LCD;
4) A wide range of input voltage, accurate output and full automatic voltage stabilization;
5) Settable battery type and charge current for the charge management of batteries of different types;
6) Settable mains supply preferred mode, energy – saving mode and battery preferred mode for easy meeting if the needs of different users;
7) Overall protection functions (battery overvoltage protection, battery under-voltage protection , overload protection , short circuit protection and over temperature protection).
