- Place of Origin:CN;GUA
- Application:HOME
- Solar Panel Type:Polycrystalline Silicon
- Mounting Type:Ground Mounting
- Brand Name:ALLTOP
- Model Number:DQ1400E1K-01
- Output Voltage (V):220VAC
- Output Frequency:50Hz/60Hz

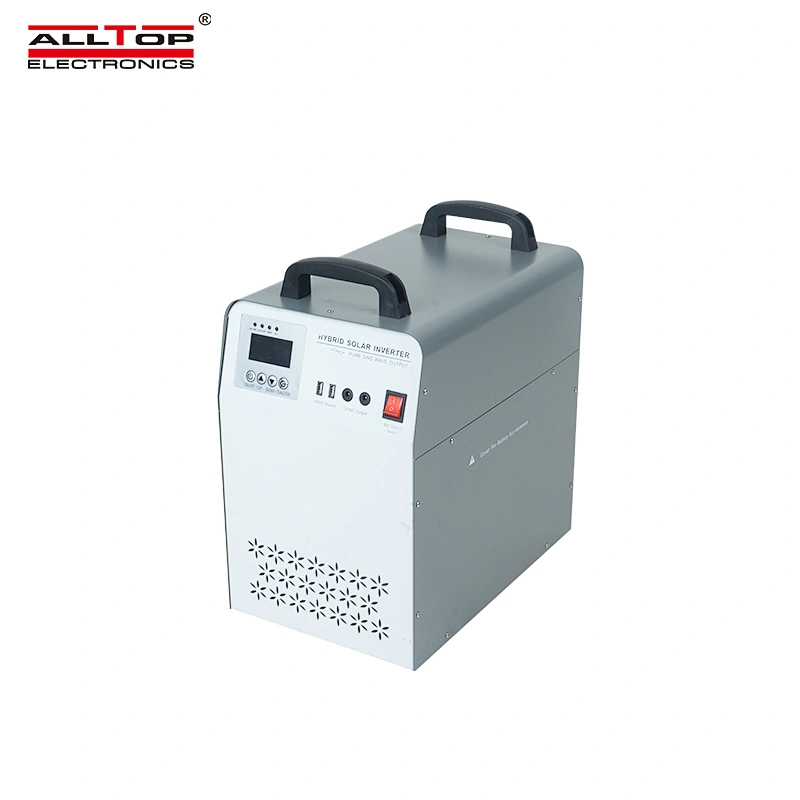

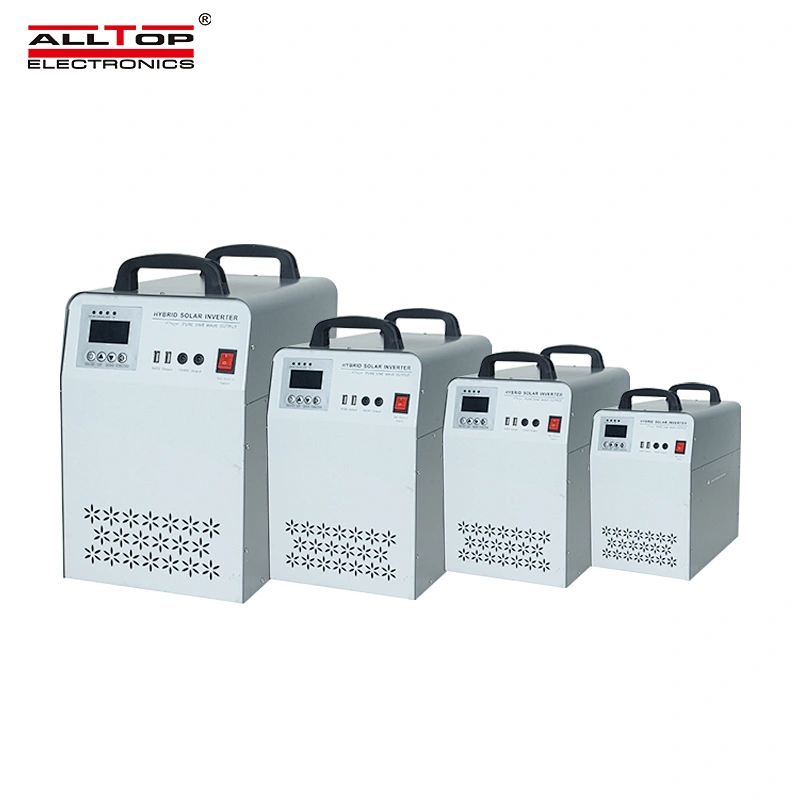

ALLTOP High quality sine wave inverter for battery bank 1kw 2kw 3kw 5kw 6kw solar power system

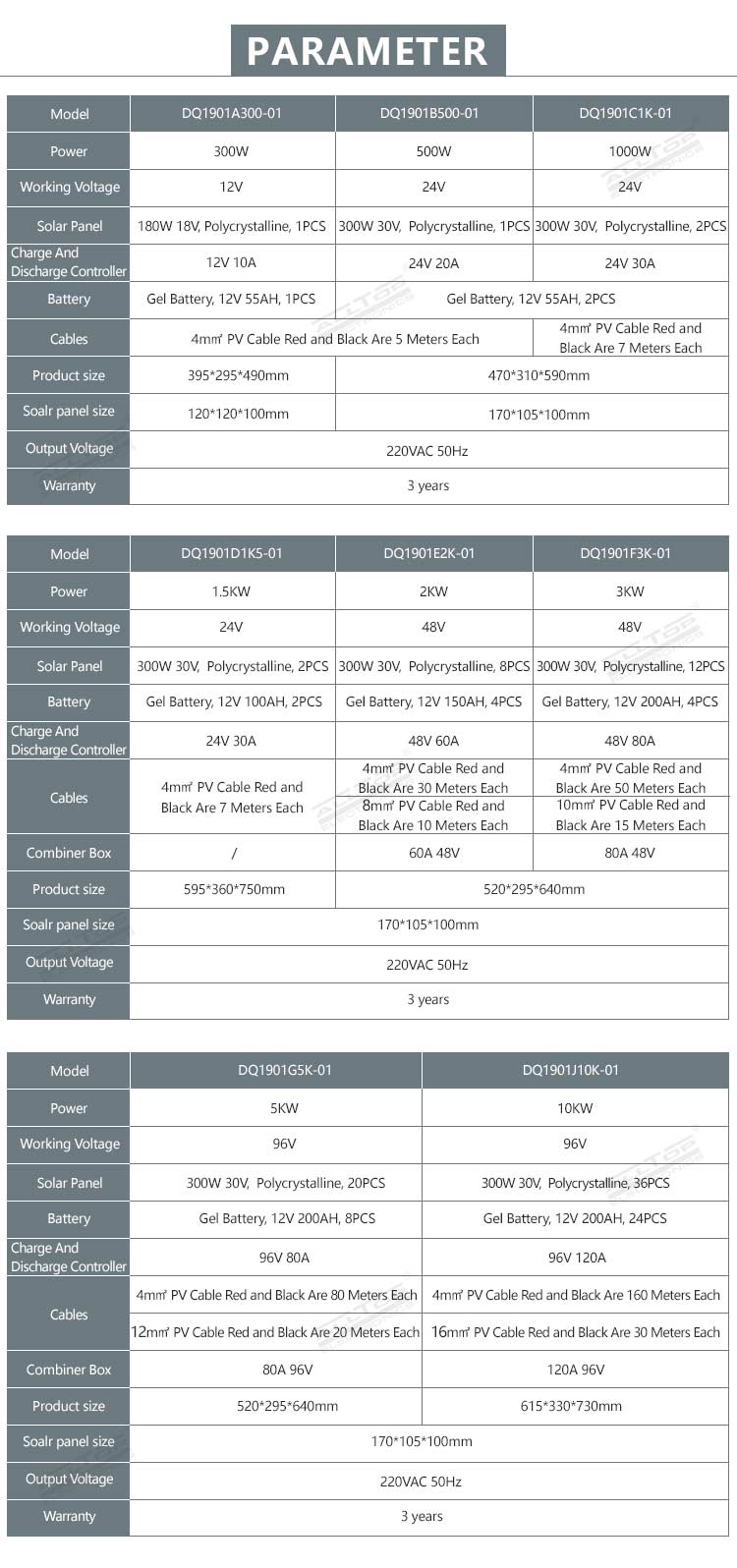

Product Attribute
PRODUCT ATTRIBUTE
| Model | DQ1901E1K-01 |
| Battery Rated Voltage | 24VDC |
| Rated Power | 1000W |
| Solar Panel | 36V 300W Polycrystalline |
| Input Voltage Range | 160-275VAC |
| Input Frequency | 45-65Hz |
| Output Voltage | 220VAC |
| Output Frequency | 50Hz/60Hz |
| Output Wave | Sine Wave |
| Internal Battery Bank | 2*55AH/12VDC |
| Communication | RS232 |
| Max .PV Voltage | ≤50VDC |
| Range Of Charging Voltage | 20-50VDC |
| Rated Charge Current | 15A |
| Voltage For Overcharge Protection | 28.4VDC |
| Voltage For Overcharge Recovery | 28.0VDC |
| Voltage For Floating Charge | 27.4VDC |
| Voltage For High Voltage Protection | 32V |
| High Voltage Recovery Voltage | 30.4V |
| Low Voltage Recovery Voltage | 25.2V |
| Low Voltage Protection Voltage | 22VDC |
| 5VDC USB Output | 2PCS/MAX 2A |
| 12 VDC Output Ports | 2PCS/MAX 2A |
| Heat Dissipation/Cooling | Temperature Control By Intelligentexhaust Fan |
| Operating Ambient Temperature | -20-+50℃ |
| Storage Ambient Temperature | -25-+55℃ |
| External Size | 423*260*453mm |
| Packing Size | 520*370*520mm |
Product Description
